Moving Length Data

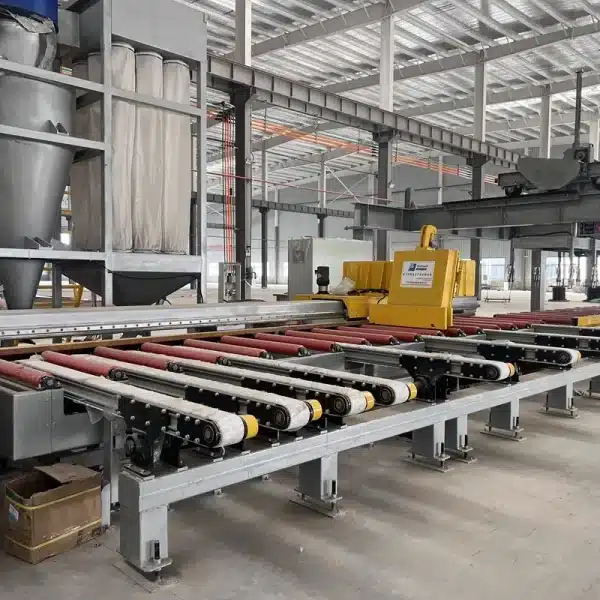

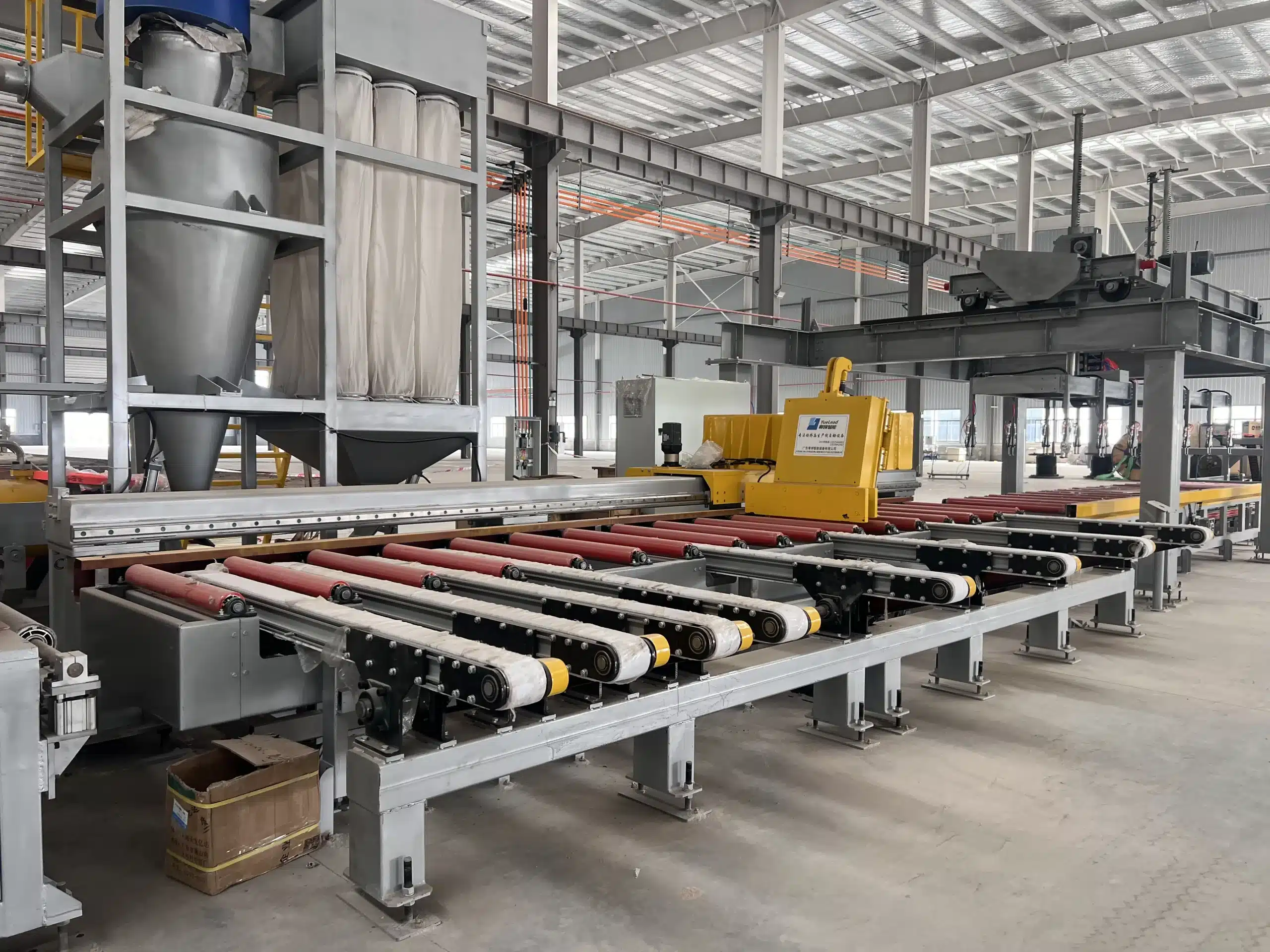

The measuring device uses the servo motor to move the measurement and obtain the moving length data of the aluminum profile in real time.
Control System
composed of high-precision sensors, controllers and actuators.The sensor transmits the measured length information to the controller, which calculates the aluminum based on the preset length and controls the actuator (such as a cutting saw) for precise cutting.
Accuracy and stability
it can meet the production of aluminum profiles with different specifications and accuracy requirements.At the same time, the system has good stability and reliability, and can adapt to the needs of long-term continuous production.
Second, the inspection table
The inspection table is mainly used for the appearance quality inspection and size inspection of the cut aluminum profiles.
1.The structure is designed as a flat table, which is equipped with a fixed device to facilitate the operator to carry out a full range of observation and detection of aluminum profiles.
2.The detection content includes the surface defects of aluminum profiles (such as scratches, bumps, peeling, etc.), shape deviations (such as bending, twisting, etc.), dimensional accuracy (such as length, width, thickness, etc.).
3.Identification and record The qualified aluminum profiles are identified, and the unqualified products are recorded and classified for subsequent processing.
4.Improve production efficiency The automation of sizing and inspection of aluminum profiles reduces manual operation and greatly improves production efficiency.
5.Ensure product quality Through accurate sizing and strict quality inspection, it can effectively ensure the dimensional accuracy and appearance quality of aluminum profiles, and improve the pass rate of products.
6.Reduce labor intensity Automated operation reduces the labor intensity of workers and improves the working environment.
7.Data statistics and analysis part of the advanced system also has data statistics and analysis functions, which can provide valuable information for production management, help to optimize the production process and improve the quality management level.
In short, the automatic sizing and inspection table for aluminum profiles play an important role in the production of aluminum profiles, which is of great significance for improving product quality, production efficiency and enterprise competitiveness
